• sun.crane.wave

    60% RGB backlit

    日.鶴.波




  • sun.crane.wave RGB

    v60the2 series

    Hot Swappable

    Hot-Swappable

    Easily remove and install any MX-based switch

    RGB Backlit

    18 RGB Mode pre-installed

    16.8 million colors RGB

    Embedded Three Dye Sublimated Key

    Esc / Enter / Space Bar

    PBT Double Shot Keycap

    Seamless shine through keycap with tranperant legends

    N-KEY ROLLOVER

    anti-ghosting technology

    Detachable USB-C

    easier to use and more powerful

  • broken image

    sun.crane.wave

    60% RGB backlit







  • ukiyo-e dye sublimated key

    High quality thick PBT keycaps with a slight grainy surface and dye sublimated lettering. Like a fine wine, these are top tier keycaps us mechanical keyboard fanatics drool over.

    Dye Sub Space Bar

    Wave









    Dye Sub ESC

    Crane



    Dye Sub Enter Key

    Sun

  • broken image

    Hot swap pcb desogn

    Easily remove and install any MX-based switch without any soldering. Personalize to what works for you, and use any combinations of switches!

  • How to remove the switches

    • When removing the switches, use the switch puller. Unclip the top and bottom clips while pulling up gently.
    • The low profile switches are more difficult to remove. When removing them, make sure you clip the sides.
    • Be careful not to scratch the keyboard with the puller.
    • BE VERY CAREFUL when mounting the switches! If you feel a lot of resistance, don’t continue pushing. If you push too hard, you could break an electronic component and void the warranty.
    • When mounting the switches, align the pins and insert them into the correct holes. The same applies to the low profile switches.
    • Be careful not to bend the metal pins when mounting the switches.
    • While fitting the switches, do it gently. If you feel a lot of resistance, don’t continue pushing. If you push too hard you could break an electronic component and void the warranty.
    • The hole on the switch where the LED light shines through should be at the top.

  • broken image

    Dye-sublimation printing

    Dye-sublimation printing (or dye-sub printing) is a computer printing technique which uses heat to transfer dye onto materials such as a plastic, card, paper, or fabric. The sublimation name was first applied because the dye was considered to make the transition between the solid and gas states without going through a liquid stage. This understanding of the process was later shown to be incorrect, as there is some liquefying of the dye. Since then, the proper name for the process has become known as dye-diffusion, though this technically-correct term has not supplanted the original name. Many consumer and professional dye-sublimation printers are designed and used for producing photographic prints, ID cards, clothing, and more.

  • broken image

    Seamless PBT Double shot keycap

    beside ESC/Enter/Space bar , others in shine through transperant on White seamless keycap with tranperant legends PBT Double Shot keycaps. Unlike printing, this keycap type is produced when two layers of plastic are molded into each other. No printing necessary. The end result is a key legend which will never fade or chip off. ABS keys will develop a shine over time; but PBT keys will retain their texture even after heavy use.

  • Precision laser engraving

    Laser engraving Right and Left Shift. The technique does not involve the use of inks, nor does it involve tool bits which contact the engraving surface and wear out

  • broken image

    engine

    Customize V60 the2

    Backlit / Button / Macro Setting



  • broken image

    special feature

    Arrow mode : lock right corner as arrow keys!

    Mac mode : swift alt as Command key!

    Default Setting : clean all memory and back to original status!

  • broken image

    accessories



    White Enter Key

    White ESC Key

    Wire keypuller

    Switch puller



    Bonus

    Vertical 1 x 2 Enter key Dye-Sub Wave

  • Review



    broken image

    Review at PTT



    Typing Sound



    broken image

    Review



  • You decide how it should feel

    Choose the mechanical switches that fit your needs.

    broken image

    Cherry series

    MX Brown / Red / Black / Blue /

    Silent Red / Silver

    broken image

    Kailh series

    Box White / Brown / Burnt Orange / Dark Yellow

    Jade / Navy

    Speed Cooper / Bronze / Silver

    Silent Pink

    broken image

    Gateron series

    Brown / Red / Yellow / Clear / Green

  • Description

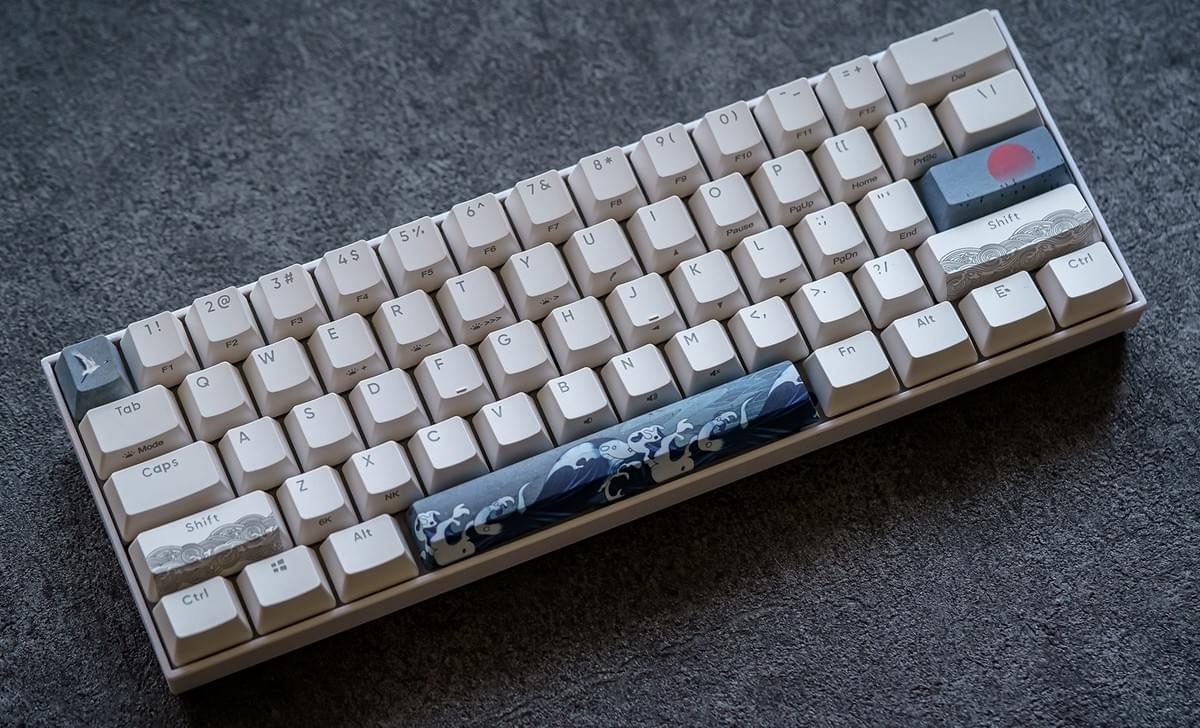

    KBParadise V60THE2 MECHANICAL KEYBOARD

    COMPACT SIZE CUSTOMIZED WITH SEAMLESS PBT DOUBLE SHOT KEYCAPS

    Trying out different switches, replacing old ones, and matching several types of mechanical keyboard switches used to be difficult and required advanced technical skill. The KBParadise V60THE2 is the mechanical keyboard featuring hot-swappable switches for Cherry, Gateron, and Kailh branded switches.

    Armed with a V60THE2, 100% anti-ghosting (full NRKO), LED back lighting (several modes), modular switches, seamless PBT double shot injection keycaps, and minimalistic design –V60THE2 is revolutionizing the mechanical keyboard market, giving users full control without needing any technical experience.

    Features

    • Hot-swappable switches. Easily remove and install any MX-based switch without any soldering. Personalize to what works for you, and use any combinations of switches!
    • Easy Access Hot-Keys – Directly access shortcuts to productivity, internet and multimedia functions
    • Raised Keys, Minimalist design – No visible branding on keyboard to make your battlestation look clean as possible. Raised key design allows you to easily clean your keyboard.

    Specifications:

    • Model: KBPV60T2
    • Prebuilt :  Yes
    • Mechanical Switch: Cherry / Kailh / Gateron
    • Keycaps color: white or black
    • Top color: white plate
    • Bottom color: white ABS plastic plate
    • USB cable color: white
    • Keycaps: PBT Seamless Double shot embed 3pcs Dye Sub keycap
    • Removable USB-C
    • Stabilizers Included
    • 61 Key Standard QWERTY layout (ANSI)
    • 100% Anti-Ghosting
    • N-Key Rollover: Full NKRO via USB, or 6KRO
    • Polling Rate: 1000 Hz
    • Dimensions (L x W x H) 290 × 100 × 40 mm (11.4 × 4.0 × 1­.6 inches)

    SYSTEM REQUIREMENTS:

    • Interface: USB 2.0
    • Windows XP, Vista, 7, 8, 10 or Mac OS or Linux (Hotkey+Software functions only work on Windows)

    INCLUDED IN BOX:

    • V60THE2 keyboard
    • Manual / Quick Start Guide
    • Keycap Puller Tool
    • Switch Puller Tool
    • Enter key x 1 keycap
    • ESC key x 1 keycap
    • 1pc 1x2 Wave Dye sub keycap
  • Q & A

    find the info you need here!

    Q : What is the difference between V60 , V60 Type R and V60 THE2

    • V60 : design in 2014 and discontinue in Dec., 2020
    • V60Type R : Open source firmware. Support TMK and QMK. If you are familiar with QMK to re-map layout, V60Type R might be your best choose.  2 options,Type R standard model not offer any backlit, pure typing. Keycaps coule be in ABS Black or ABS Double Shot ( Deep Ocean or Purple Dream ) Type R Polestar with shine through keycap , offer front White LED and rear RGB underglow backlit. And Type R Polestar with ABS double shot keycap. Front in Deep Ocean or Purple Dream keycap , no top LED. But with rear RGB Underglow.
    • V60 THE2 : on market in Feb. , 2021. The newest models.   18 RGB mode , Hot sawp switch , Seamless PCB Double Shot Keycap , program and setting through driver download.

    Q : on the v60 the2 will I be able to set caps lock as my function key?

    A : Our first edition driver for V60THE2 can program include Light , Button , Macro , but not include FN position. We start to upgrade Driver to adjust FN position. We will upload the newest driver on web-site once it ready.

    Q : Will The Great Wave support RGB Backlight?

    A : There are two editions. First basic edition Great Wave not offer RGB backlight function. And second (this page ) support RGB backlit.

    Q : Whenever I click the left ALT button, it activates the WINDOWS button. and whenever I click the WINDOWS button, the ALT button activates

    A : It should be lock on Arrow mode or Mac mode.

    Please press FN+ left shift and then press "enter".

    It will back to default setting.
